Fully compatible with Ubuntu 22.04 Linux system for industrial IoT development

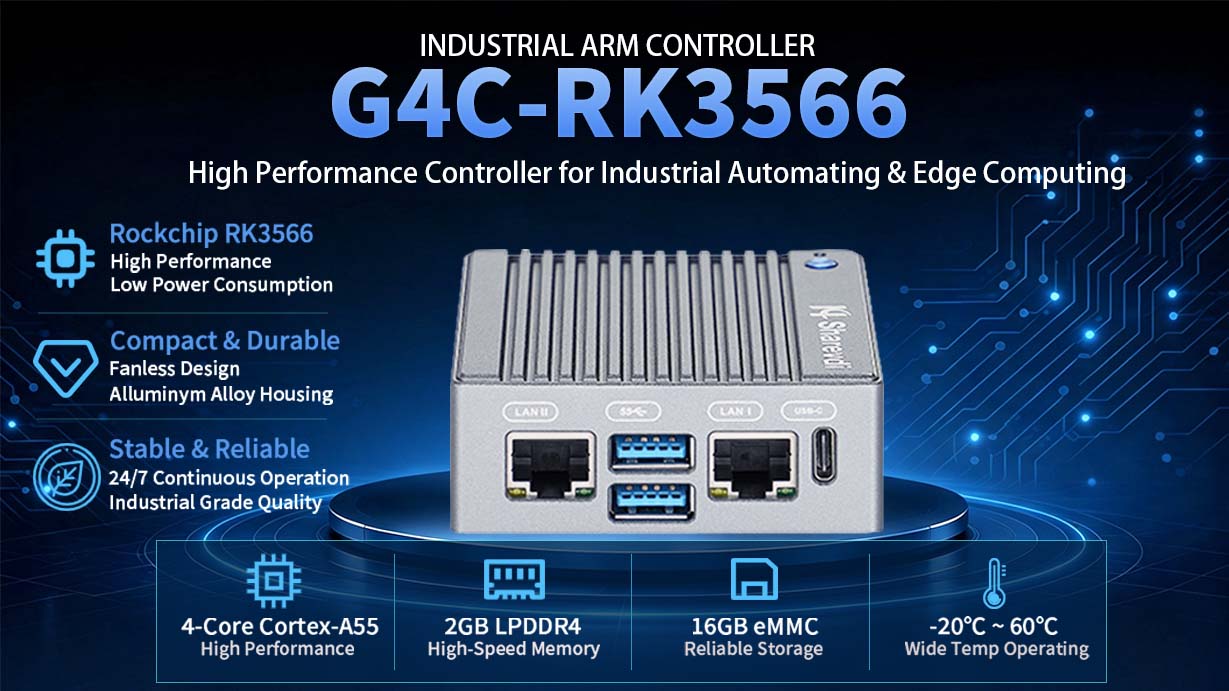

G4C Industrial ARM Controller
Model:
G4C
Fanless rugged industrial mini PC with passive cooling for long-term industrial use
Rockchip RK3566 Quad-core 64-bit Cortex-A55 ARM processor
Built-in Mali-G52 GPU + 0.8 TOPS dedicated NPU for edge AI computing
2GB RAM +16GB eMMC storage, TF card slot for flexible storage expansion
6-channel opto-isolated RS485 + 8-channel isolated DI/DO industrial control ports
9~36V wide DC input power terminal for industrial & vehicle power supply
Dual 1000Mbps Gigabit Ethernet RJ45 ports for dual-network communication
Tiny compact dimension: 72×70×26.4mm, ideal for embedded installation
Fanless rugged industrial mini PC with passive cooling for long-term industrial use
Rockchip RK3566 Quad-core 64-bit Cortex-A55 ARM processor
Built-in Mali-G52 GPU + 0.8 TOPS dedicated NPU for edge AI computing
2GB RAM +16GB eMMC storage, TF card slot for flexible storage expansion
6-channel opto-isolated RS485 + 8-channel isolated DI/DO industrial control ports
9~36V wide DC input power terminal for industrial & vehicle power supply
Dual 1000Mbps Gigabit Ethernet RJ45 ports for dual-network communication
Tiny compact dimension: 72×70×26.4mm, ideal for embedded installation
Share：
Industrial ARM Controller G4C adopts Rockchip RK3566 quad-core Cortex-A55 processor with integrated Mali-G52 GPU and 0.8 TOPS dedicated NPU, delivering reliable edge AI and data processing performance. Equipped with 2GB RAM + 16GB eMMC expandable via TF card, dual Gigabit Ethernet, 6 opto-isolated RS485 and 8 DI/DO channels, plus 9–36V wide DC power input, it resists industrial interference for 24/7 stable operation. Pre-supported Ubuntu 22.04 enables convenient secondary development.
With ultra-small 72×70×26.4mm footprint and passive cooling design, it fits embedded installation perfectly. Widely deployed for factory production line data acquisition, PV & energy storage equipment monitoring, smart building automation, and charging pile data collection.
-
Part No.G4C-RK3566
-
-
System
SOC
Quad-core 64-bit Cortex-A55 processor
CPU
Rockchip RK3566
NPU
0.8TOPS
Memory
2GB
Storage & Expansion
EMMC 16G;Built in TF card slot, supports storage expansion
-
Video
GPU
Mali-G52
Hardware Codec
Supports 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 60fps H.265/H.264 video encoding Supports 8M ISP, HDR support
Display Interfaces
1 × HDMI 2.0, supports 4K@60fps output; Maximum HDMI resolution: 4096×2304@60Hz
-
Network
Ethernet
Gigabit Ethernet x 2 (RJ45, 1000Mbps)
Wireless Network
None
-
I/O
USB
1 × USB 2.0, 1 × USB 3.0, 1 x TYPEC-C
RS485
6 x RS485 (Optocoupler Isolation)
I/O
4 x DI; 4 x DO; (Optocoupler Isolation)
flash
1 x Flash
-
Others
Watchdog
Optional
RTC
Supported
-
Power supply
Power Input
12V-1.5A power terminal; （supports 9V~36V wide voltage input）
Buttons/Indicators
Supported
-
Physical Parameters
Enclosure Dimension
72 mm × 70 mm × 26.4mm (2.83 in × 2.76 in × 1.04 in)
Package Dimensions
130 mm × 160 mm × 55mm (5.12 in × 6.30 in × 2.17 in)
Net Weight
0.16 kg (0.35 lbs)
Gross Weight
0.6 kg (1.32 lbs)
-
Software
Operating System
Ubuntu24.04
-
Environment
Working Temperature
-40~60°C (14~104°F)
Storage Temperature
-40~60°C (14~104°F)
Working/Storage Humidity
0~85% RH (non-condensing)
Safety Certifications
CCC，CE，ISO
System
-
SOC
G4C-RK3566
Quad-core 64-bit Cortex-A55 processor
-
CPU
G4C-RK3566
Rockchip RK3566
-
NPU
G4C-RK3566
0.8TOPS
-
Memory
G4C-RK3566
2GB
-
Storage & Expansion
G4C-RK3566
EMMC 16G;Built in TF card slot, supports storage expansion
Video
-
GPU
G4C-RK3566
Mali-G52
-
Hardware Codec
G4C-RK3566
Supports 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 60fps H.265/H.264 video encoding Supports 8M ISP, HDR support
-
Display Interfaces
G4C-RK3566
1 × HDMI 2.0, supports 4K@60fps output; Maximum HDMI resolution: 4096×2304@60Hz
Network
-
Ethernet
G4C-RK3566
Gigabit Ethernet x 2 (RJ45, 1000Mbps)
-
Wireless Network
G4C-RK3566
None
I/O
-
USB
G4C-RK3566
1 × USB 2.0, 1 × USB 3.0, 1 x TYPEC-C
-
RS485
G4C-RK3566
6 x RS485 (Optocoupler Isolation)
-
I/O
G4C-RK3566
4 x DI; 4 x DO; (Optocoupler Isolation)
-
flash
G4C-RK3566
1 x Flash
Others
-
Watchdog
G4C-RK3566
Optional
-
RTC
G4C-RK3566
Supported
Power supply
-
Power Input
G4C-RK3566
12V-1.5A power terminal; （supports 9V~36V wide voltage input）
-
Buttons/Indicators
G4C-RK3566
Supported
Physical Parameters
-
Enclosure Dimension
G4C-RK3566
72 mm × 70 mm × 26.4mm (2.83 in × 2.76 in × 1.04 in)
-
Package Dimensions
G4C-RK3566
130 mm × 160 mm × 55mm (5.12 in × 6.30 in × 2.17 in)
-
Net Weight
G4C-RK3566
0.16 kg (0.35 lbs)
-
Gross Weight
G4C-RK3566
0.6 kg (1.32 lbs)
Software
-
Operating System
G4C-RK3566
Ubuntu24.04
Environment
-
Working Temperature
G4C-RK3566
-40~60°C (14~104°F)
-
Storage Temperature
G4C-RK3566
-40~60°C (14~104°F)
-
Working/Storage Humidity
G4C-RK3566
0~85% RH (non-condensing)
-
Safety Certifications
G4C-RK3566
CCC，CE，ISO
